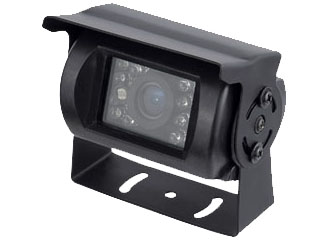

car IR waterproof camera

产品编号: RCM-CM342S/IR

产品特点:

SONY/SHARPCCD (optional)

10 pcs built-in ￠5mm IR LED

When there is low illumination, CDS controls IR led automatic opening

10M night vision distance

SONY/SHARPCCD (optional)

10 pcs built-in ￠5mm IR LED

When there is low illumination, CDS controls IR led automatic opening

10M night vision distance

Model	RCM-CM354S/IR	RCM-CM348S/IR	RCMCM348SF/IR	RCM-CM342S/IR	RCM-CM442A/IR
CCD sensor	1/3"SONY CCD	1/3"SONY CCD	1/3"SONY CCD		1/4"SHARP CCD
pixel(H×V)	PAL:795×596 NTSC:811×508	PAL:752×582 NTSC:768×494	PAL:500×582 NTSC:510×492
horizontal resolution	540TVL	480TVL	470TVL	420TVL	420TVL
signal system	PAL / NTSC
horizontal synchronous frequency	PAL:15.625KHZ / NTSC:15.734KHZ
clock frequency MHZ	PAL:19.3125 / NISC:19.0699
scanning system	2:1 interlaced scanning
lowest illumination	0LUX(IR led open)
method of synchronization	internal synchronization
S/N	48 dB
electronic shutter	PAL:1/50-1/100,000sec;NTSC:1/60-1/100,000
Gamma characteristics	0.45
video output	1 Vpp,75 Ohms
AGC	automatic
IR led( IR distance)	10 pcs (20m)
power supply	12VDC(+/-10%)
electricity current	300mA
size	￠118×74
weight	0.25Kg
working temperature	-10-45℃
color	black
